Versatile, Flexible and
Energy Efficient
Energy Efficient

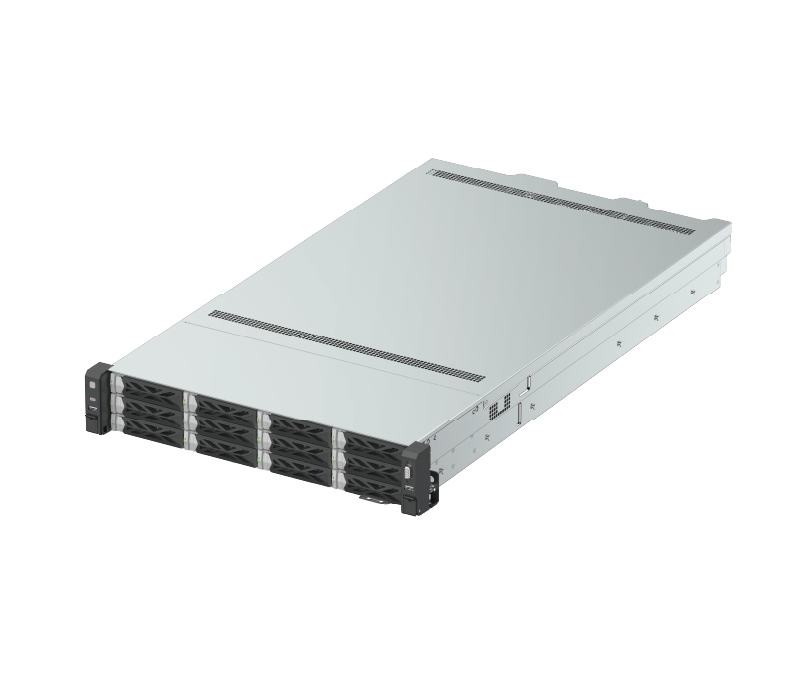

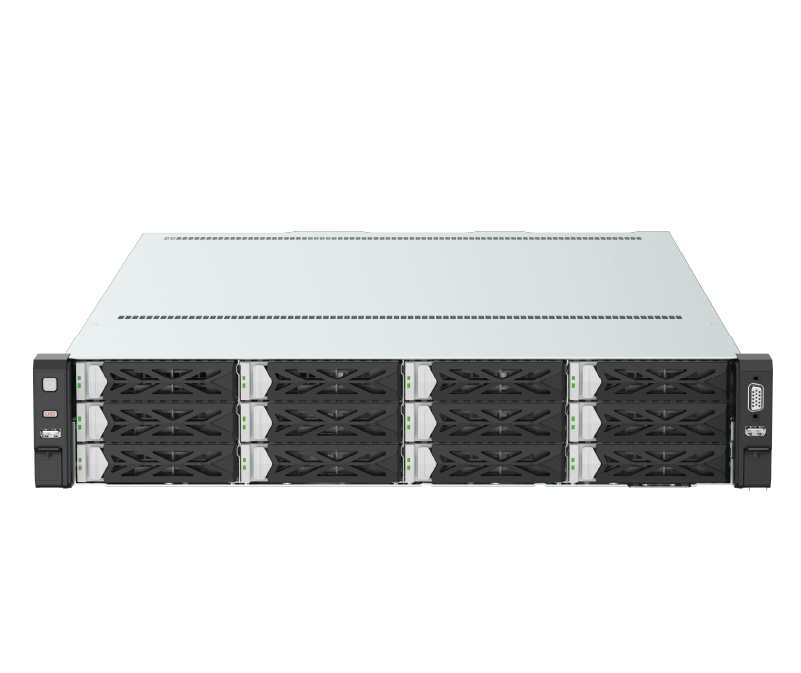

P6220 is a 2U2S general server based on Intel's latest Whitley platform for the enterprise market. Through modular design and cost optimization design, it can meet the market demand for cost-effective products.
Application
Cloud and virtualization, big data analytics, etc.
Features
Extreme Performance
Based on the 3rd Gen Intel®Xeon®Scalable Processor, TDP 270W
Support the 2nd Gen Intel DCPMM and BPS
Excellent cooling and noise control
Extensive Scalability
Front and rear storage options with a maximum of 20 disk slots
Support 8x standard PCIe slots
OPC 3.0
Cost-effective Product
Compatible with TPM and TCM security control module
The ultimate cost-effective on-board networking option
Product Specification
| Name | Qilian P6220 General-Purpose Sever |
| CPU | 1/2x 3rd generation Intel®Xeon®scalable processors, TDP 270W |
| Memory | Up to 32x DDR4 DIMMs, up to 3200MT/s |
| Storage | Front：up to 12x 3.5-inch HDDs Rear：up to 4x 2.5-inch HDDs |
| PCIe IO | Up to 8x PCIe slots + 1x OCP3.0 slot Riser1：FHFLx16 + FHFLx8 + FHHLx8 Riser2：FHFLx16 + FHFLx8 + FHHLx8 Riser3：FHFLx8 + FHFLx8 |
| Management | 2x RJ45 GbE management ports |
| Basic IO | 2x Front & 2x Rear USB 3.0, Type-A 1x PWR BTN with LED 1x Front VGA + 1x Rear VGA |
| Thermal | 4x High-performance and hot-swappable fans, N+1 Redundancy |
| Temperature | 5ºC - 35ºC Up to 45ºC for certain configurations |
| PSU | 2x CRPS PSUs, 1+1 Redundancy |
| Dimension | 86mm (H) x 436mm (W) x 815mm (D) |
Series products
P6236 General-Purpose Server
Intel® EGS 2U2S General Server
Extensive Scalability
Reliable Performance
Cost-Effective Solutions
