Rapid Deployment, Flexible Scalability - the best choice for intelligent access.

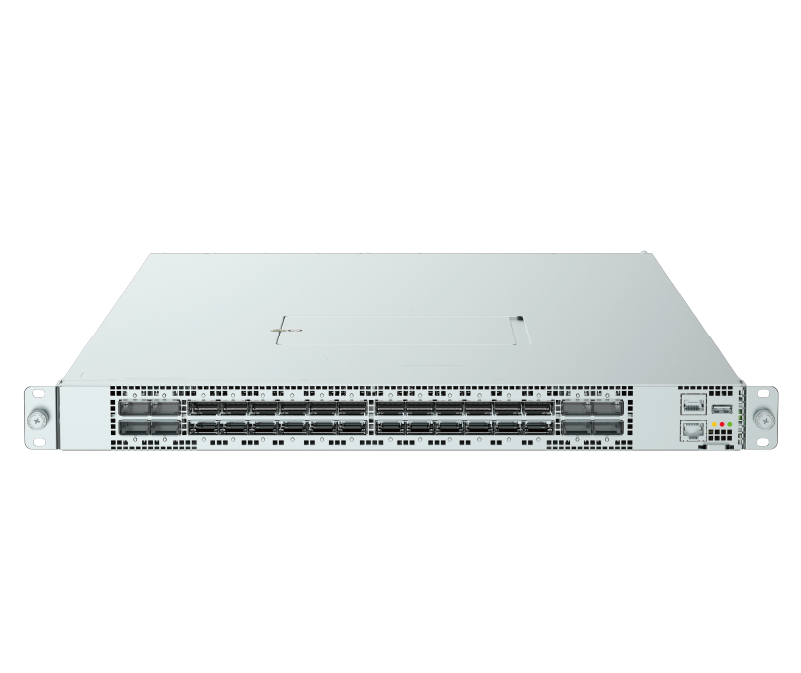

S8130 switch is a high-performance Top-of-Rack (TOR) open network switch for data centers. This compact 1RU box-type device offers 24*200GbE downlink ports for server connections and 8*400GbE uplink ports for backbone switch connections. Based on the advanced hardware-software decoupling design, it provides users with a line-rate, non-blocking high-performance forwarding with up to 8T switching capacity. This switch is pre-installed with the Open Network Install Environment (ONIE) and supports the installation of compatible Network Operating System (NOS)，including open-source Sonic and various commercial NOS options.
Application
Data center TOR switching
Features
Data Center Network Access: The TOR switch is used at the network access layer of data centers
High-Performance Design: Superior Signal Integrity (SI) performance with a phyless design and excellent cooling capabilities
Energy-Efficient Design: Intelligent power-saving features
One-Click Diagnostics: Fast and accurate fault location
Real-Time Monitoring: Supports second-level monitoring of system status
Log Collection: Supports one-click collection of system operation logs
Product Specification
| Name | S8130 TOR Switch |
| Port Types | 24x 200G QSFP56 + 8x 400G QSFP-DD |
| Switching Capacity | 8.0 Tbps |
| Management Ports | 1x 10/100/1000 Base-T MGM 1x USB 2.0 Type A 1x RJ45 Console |
| Dimension | 440mm(W) x 650mm(D) x 43.6mm(H) |
| Operating Environment | 0℃ - 40℃, 5% - 90% RH |
| CPU / Memory | Type 7 (125mmx95mm)，CPU：Intel Hewitt Lake D1627 ECC SODIMM DDR4 2x 16GB, Dual 16MB BIOS flash 240GB M.2 SATA SSD |
| BMC Management | RunBMC，AST2520（optional） 1GB DDR4, 8GB eMMC, 2x 64MB SPI FW Flash |
| Power Supply | 1+1 redundancy, 800W CRPS PSU AC: 90 - 264VAC, HVDC: 180V - 300VDC |
| Fans | N+1 redundancy, 5 fans, Support Airflow: F2B |
| Port Status LEDs | QSFP56: 1 LED/Port QSFP-DD: 2 LED/Port, 5x Bi-color (Yellow/Green) LED |
| Mounting | Support rail and ear mounting |
| Weight | Approx. 10kg |
| Electromagnetic Compatibility | FCC, EN55022, EN61000-3-2, EN61000-3-3 or EN61000-3-11, EN61000-3-12：EN55024, EN300 386 |
